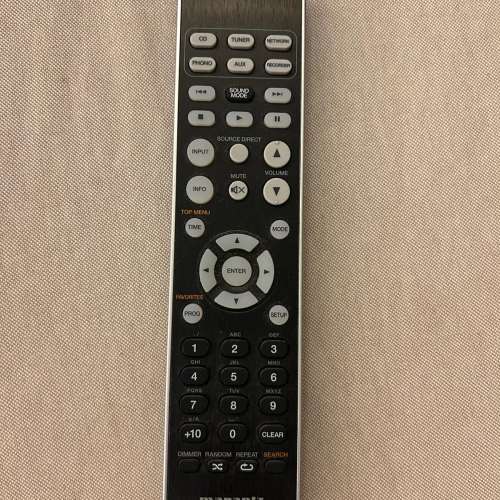

運作正常，有pre out，也可做純後級或AV Bypass，有原裝遙控，電源線
可以試機
銅鑼灣交收


Specifications:
RMS Power output (20 Hz – 20 kHz simultaneous drive of both
channels) : 70 W x 2 (8 Ω/ohms load)
100 W x 2 (4 Ω/ohms load)
0 Total harmonic distortion (20 Hz – 20 kHz simultaneous drive of
both channels, 8 Ω/ohms load) : 0.02 %
0 Output band width (8 Ω/ohms load, 0.06 %) : 5 Hz – 60 kHz
0 Frequency response (CD, 1 W, 8 Ω/ohms load) : 5 Hz – 100 kHz ±3 dB
0 Damping factor (8 Ω/ohms load, 40 Hz – 20 kHz) : 100
0 Input sensitivity/Input impedance
PHONO (MM) : 2.0 mV/47 kΩ/kohms
CD, TUNER, NETWORK, AUX, RECORDER : 220 mV / 20 kΩ/kohms
POWER AMP DIRECT IN : 1.6 V / 15 kΩ/kohms
0 Output voltage/Output impedance
PRE OUT : 1.6 V / 600 Ω/ohms
0 Maximum allowable PHONO input level (1 kHz) MM : 80 mV
0 RIAA deviation (20 Hz – 20 kHz) : ±0.5 dB
0 S/N (IHF-A, 8 Ω/ohms load)
PHONO (MM) : 87 dB (5 mV input, 1 W output)
CD, TUNER, NETWORK, AUX, RECORDER : 106 dB (2 V input, Rated output)
POWER AMP DIRECT IN : 125 dB (Rated output)
Contents Connections Playback Settings Tips Appendix
41Front panel Rear panel Remote control
unit Index
0 Tone Control
BASS (50 Hz) : ±10 dB
MID (900 Hz) : ±6 dB
TREBLE (15 kHz) : ±10 dB
0 Power supply : AC 230 V, 50/60 Hz
0 Power consumption : 220 W
0 Power consumption in standby mode : 0.2 W
