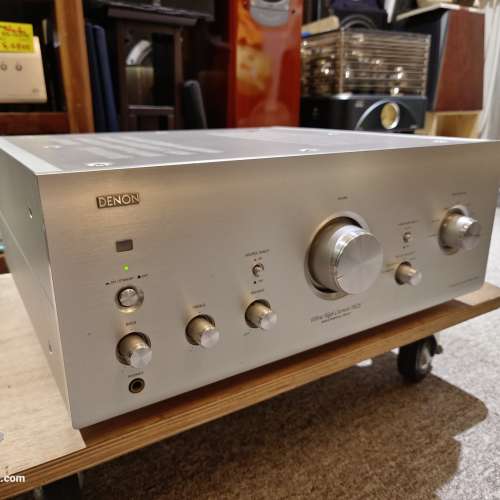

Made in Japan, 重型合併機, 雙火牛, 原裝遙控,
內置phono, 另外可獨立作前級或後級使用
操作正常可以試
尺寸: 闊43.5, 高18, 深40cm

Main Specifications
Power amplifier section
Rated output: 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, THD 0.07%) 160 W + 160 W (4 ohms, 1 kHz, THD 0.7%)
Total harmonic distortion: 0.01% (rated output -3 dB, 8 ohms, 1 kHz)
Input sensitivity / Impedance Power Amp Direct: 0.9 V/47 kohms
Preamplifier section
Phono preamp rated output: 150 mV
Input sensitivity / Impedance:
LINE: 135 mV / 47 kohms (Source direct OFF)
PHONO MM: 2.5 mV / 47 kohms
PHONO MC: 200 μV / 100ohms
RIAA deviation: PHONO 20 Hz - 20 kHz, ±0.5 dB (MM), PHONO 30 Hz - 20 kHz, ±0.5 dB (MC)
Input Ports
Phono (MM/MC) x 1
CD x 1
Tuner x 1
Line-1 x 1
Line-2 x 1
Recorder-1 (Playback) x 1
Recorder-2 (Playback) x 1
Output Ports
Power amp direct x 1
Recorder-1 (REC) x 1
Recorder-2 (REC) x 1
Preout x 1
General
Power consumption: 310 W
Stand-by power consumption: less than 0.3W
Dimensions: (W x H x D) 434 x 181 x 435 mm
Weight: 24kg
