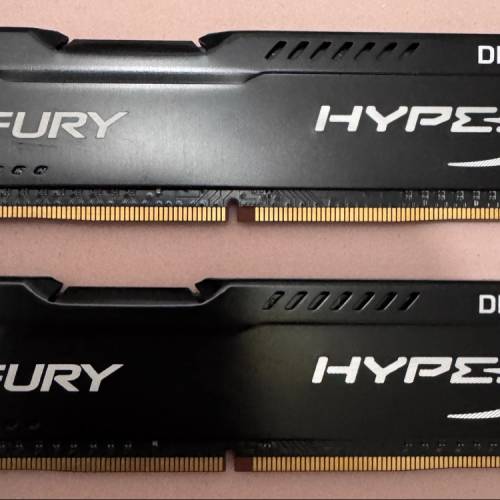

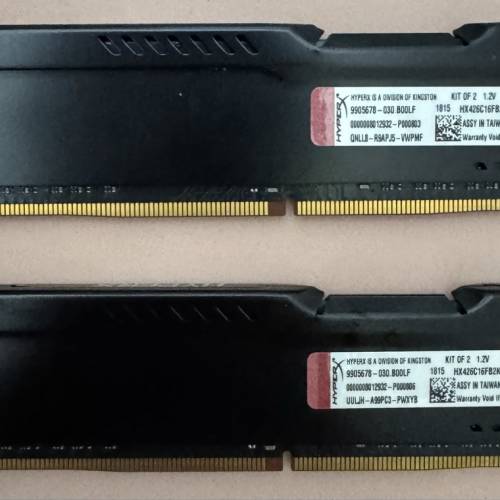

HyperX HX426C16FB2K2/16 is a kit of two 1G x 64-bit (8GB)
DDR4-2666 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 1G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 2.0. Total kit capacity is 16GB. Each module has
been tested to run at DDR4-2666 at a low latency timing of 16-18-18
at 1.2V. Additional timing parameters are shown in the
Plug-N-Play (PnP) Timing Parameters section below. The
JEDEC standard electrical and mechanical specifications are
as follows:
Note: The PnP feature offers a range of speed and timing options to support
the widest variety of processors and chipsets. Your maximum speed will
be determined by your BIOS.
JEDEC/XMP TIMING PARAMETERS
• JEDEC/PnP: DDR4-2666 CL16-18-18 @1.2V
• XMP Profile #1: DDR4-2666 CL16-18-18 @1.2V
