Pro's Kit MT-2017N Multimeter Anti-Burning Pointer Professional Ohm Test Meter DC AC Voltage Mechanical Tester with Storage box (26檔指針型防誤測三用電錶)-Capacitance/Decibels /Diode /Resistance/DC/AC Voltage/ Null DCV Measurement
Transistor hFE and LED /Continuity Test/ Battery Check


Reliable, Safe and Accurate

Smart Protective function analog Multimeter

New Mechanism Design
- The robust protective holster alongside provides better protection
- Comes with foldable stand and hook up design for convenient
- Separately 9v and 1.5V batteries cases, replace battery of fuse more easily

Versatile Multi-functions
- Combines with DC/AC voltage, DC current , resistance, capacitance, decibels, diode, transistor hFE, LED test and battery check function to meet different application requirements.

Reliable, Safe and Accurate
- Complies with CE and Pollution Degree 2 safety rated

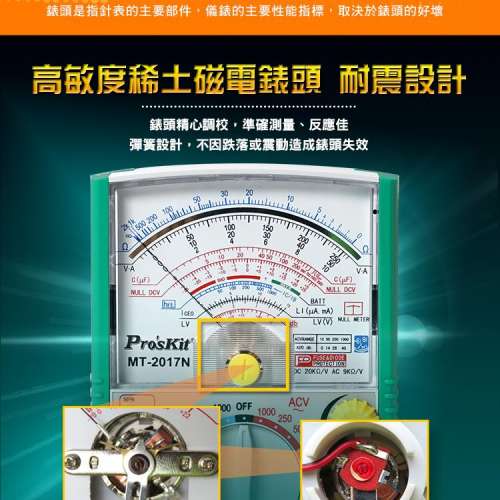

- Built-in strong magnet pivot-jewell movement.
- Overload protection with two fuses 0.5A & 10A ensure uninterrupted and long lifetime.
- Attached 1000V 10A gilded test leads, more stable and reliable

This Multi-meter is an accurate, safe handheld meter that comes with mirrored Aluminum dial, robust protective holster alongside, built-in stand and hook-up design. MT-2017 is powered by batteries, offers accurate, reliable measurement of DC/AC Voltage, +/-DCV, DC Current, Resistance and Diode, LED, Transistor, Decibels, Continuity test and Capacitance with very high sensitivity quality movement.

This meter is designed with double-sided glass-epoxy PCB, full overload & misused protection via two Fuses, voltage Suppressor & Diodes, and smart protection on Ω testing via the extra Resettable Fuse & Varistor. Ideal for indoor use in laboratory, school, workshop, and home applications.

Safety Category: IEC61010-1, CAT II 1000V, CAT III 500V and Pollution Degree 2.

Features:
1.mirrored Aluminum dial plate.
2.green slip shock protection cover.
3.resistance, Current & Voltage measurements.
4.transistor HFE Test,Diode LED Test.
5.short Circuit Buzzer.

Descriptions:
1.ideal for using in the fields of lab, school, home applications and more.
2.battery:AA(1.5V)x2pcs and 6F22(9V) x1pcs(not included)

Specifications:
Model:MT-2017N
DC Voltage:0.1/2.5/10/50/250V ±3.0%FSD,1000V ±4.0%FSD
Intermediate zero ±DC Voltage:DC±5V/±25V ±5.0%FSD
AC Voltage:10/50/250V ±4.0%FSD ,1000V ±5.0%FSD
DC Current:50µ/2.5m/25m/250mA ±3.0%FSD,10A ±4.0%FSD
Resistance:x1(0.2-2kΩ)/ x10(2-20kΩ) x100 (20-200kΩ)/
x1k(200-2MΩ)/ x10k(2k-20MΩ)±4.0%ARC
Capacitance:
C1(Rx1k):2000µF(Approx.)
C2(x50µA):0.025µ/0.25µ/25µ±3.0%FSD(Option MT-2007-C)
Battery Test:1.5V/9V
EN61010-1:CE/ CATII 1000V, CATIII 500V
Item weight:316g
Item size:165X105X40mm

Package informations:
Package weight: 472g/16.60oz
Package Size:172X136X60mm/6.77 x 5.35 x 2.36 in
Polybag Package
